iDRAW
STEEL DETAILING
3D MODELLING AND SHOP DRAWING SERVICES FOR ALL TYPES OF STEEL STRUCTURES
SERVICES
We provide quality shop drawings for fabrication and general arrangement drawings for site erection. Using the Advance Steel software or Tekla Structure which enables us to produce accurate bill of material lists and export NC and dxf data.
Steel Detailing
-

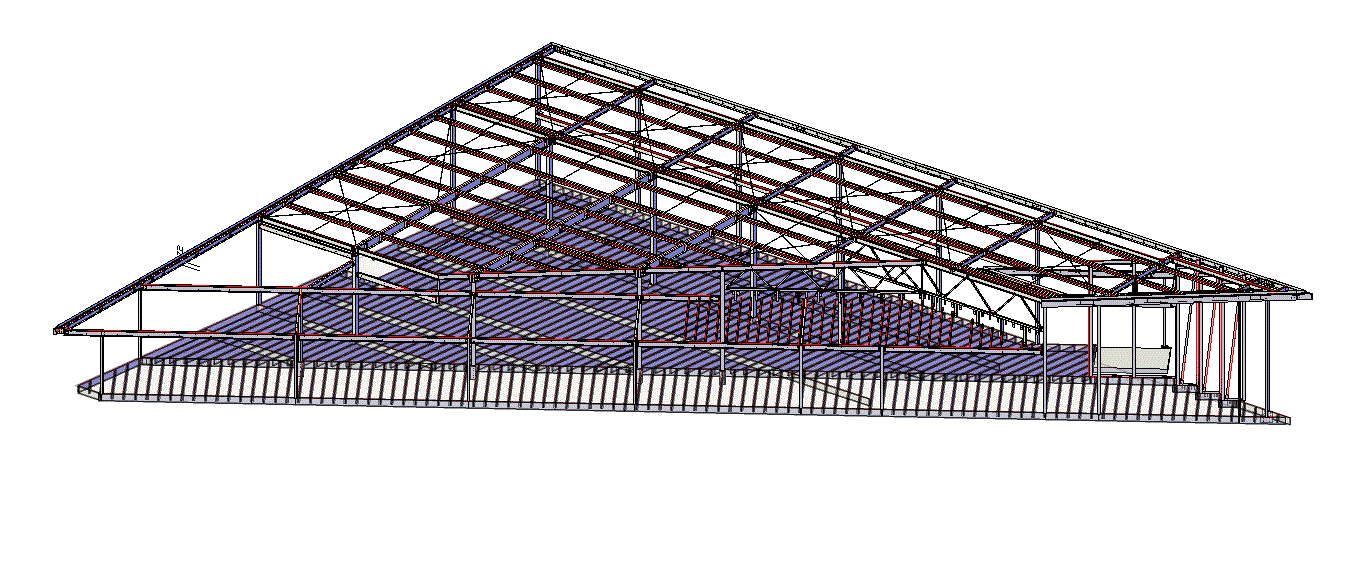

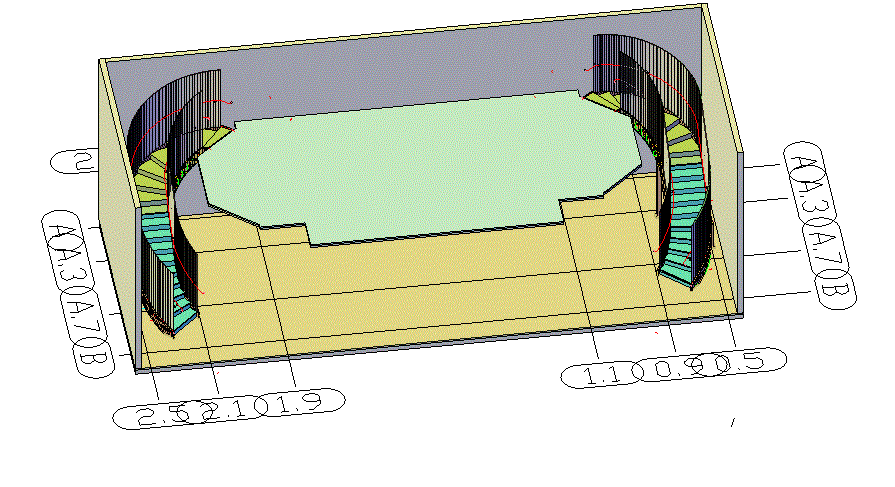

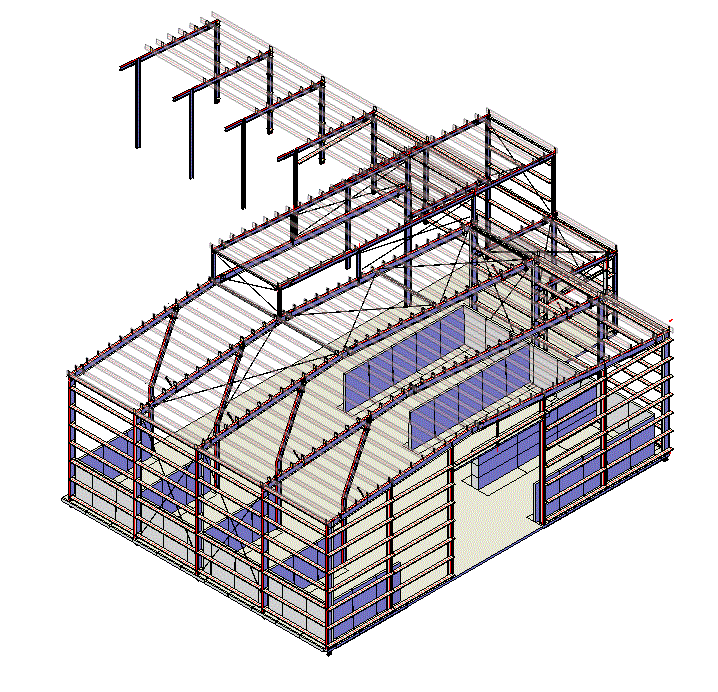

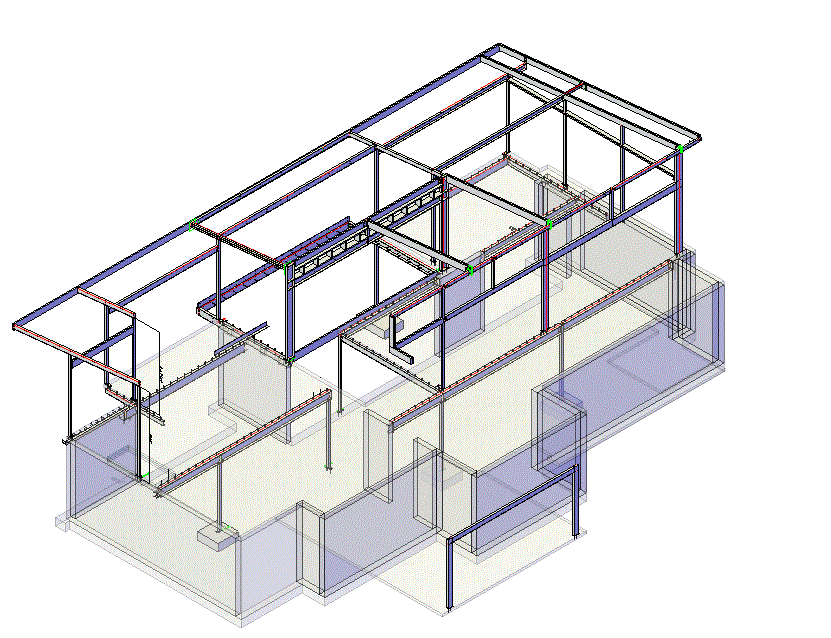

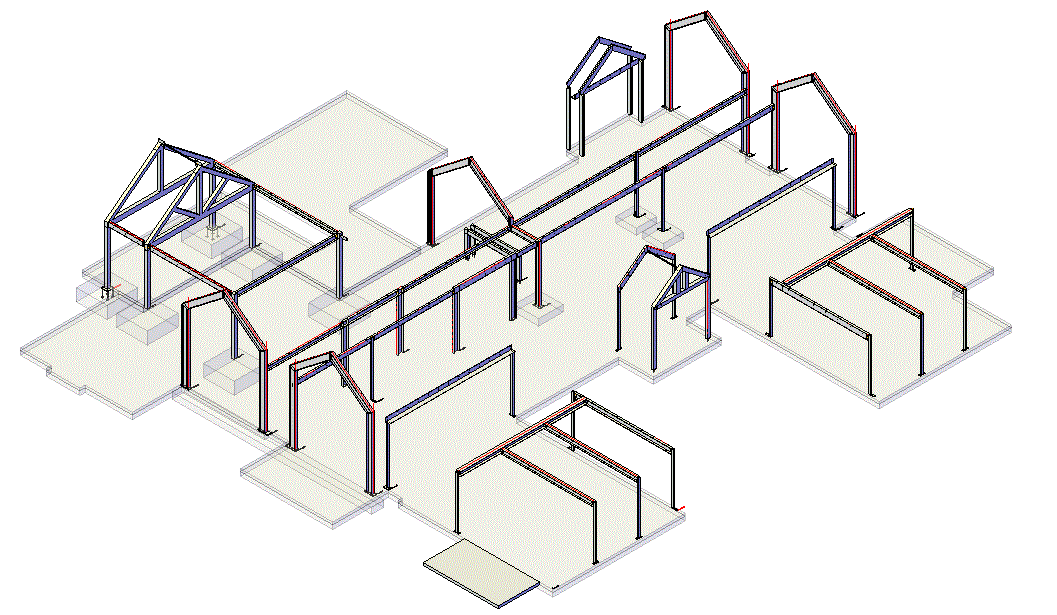

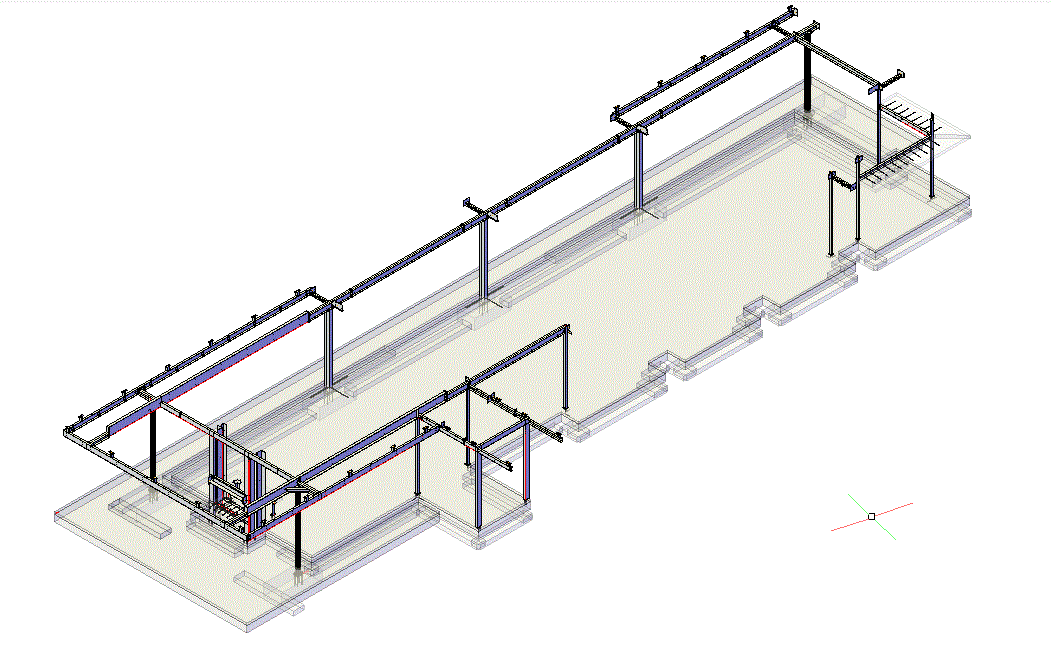

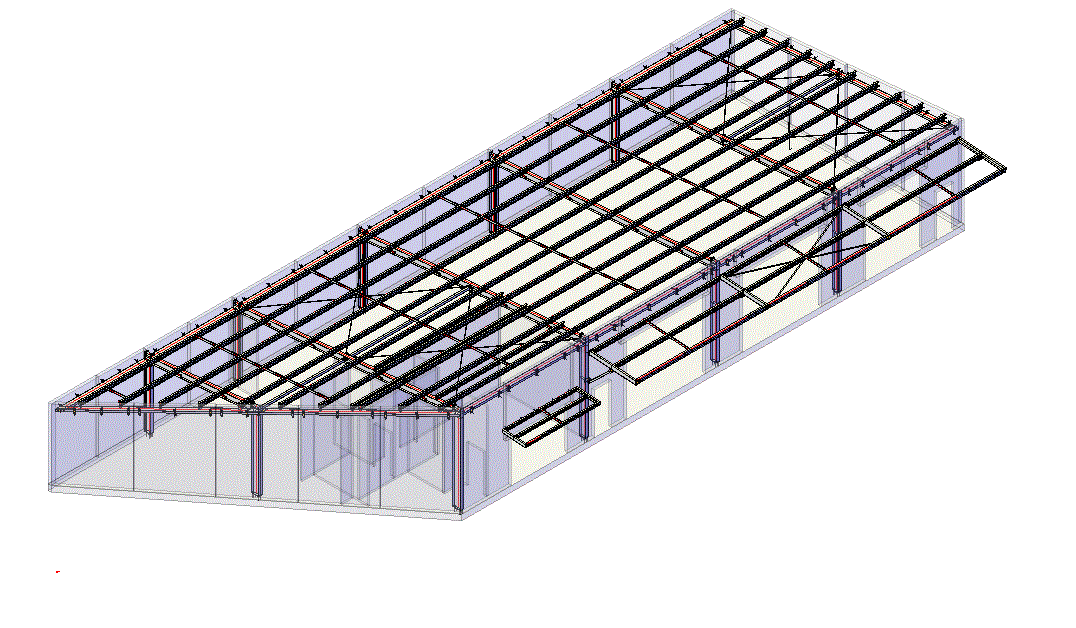

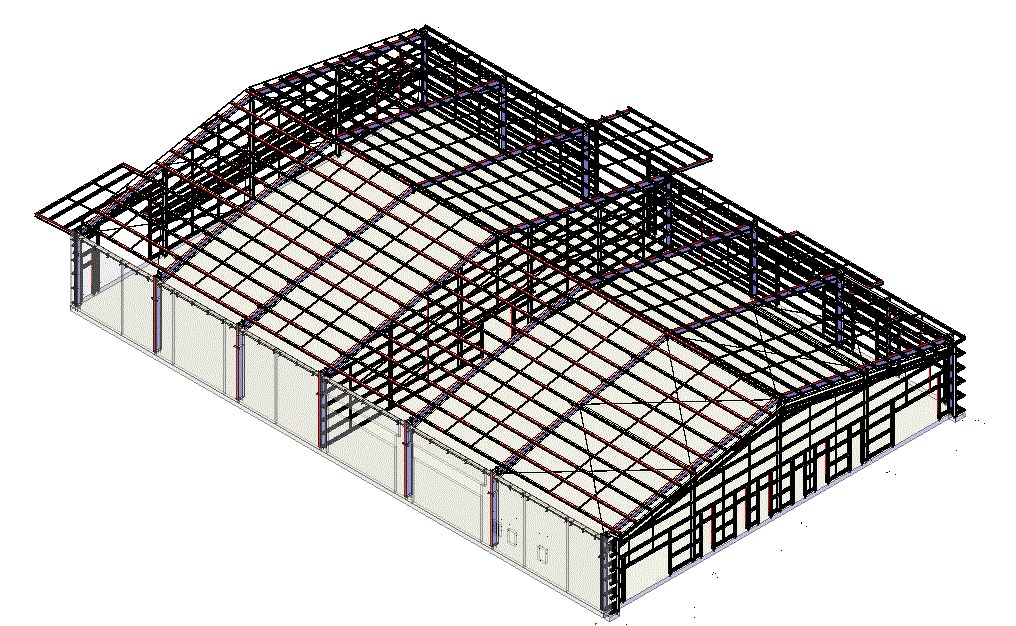

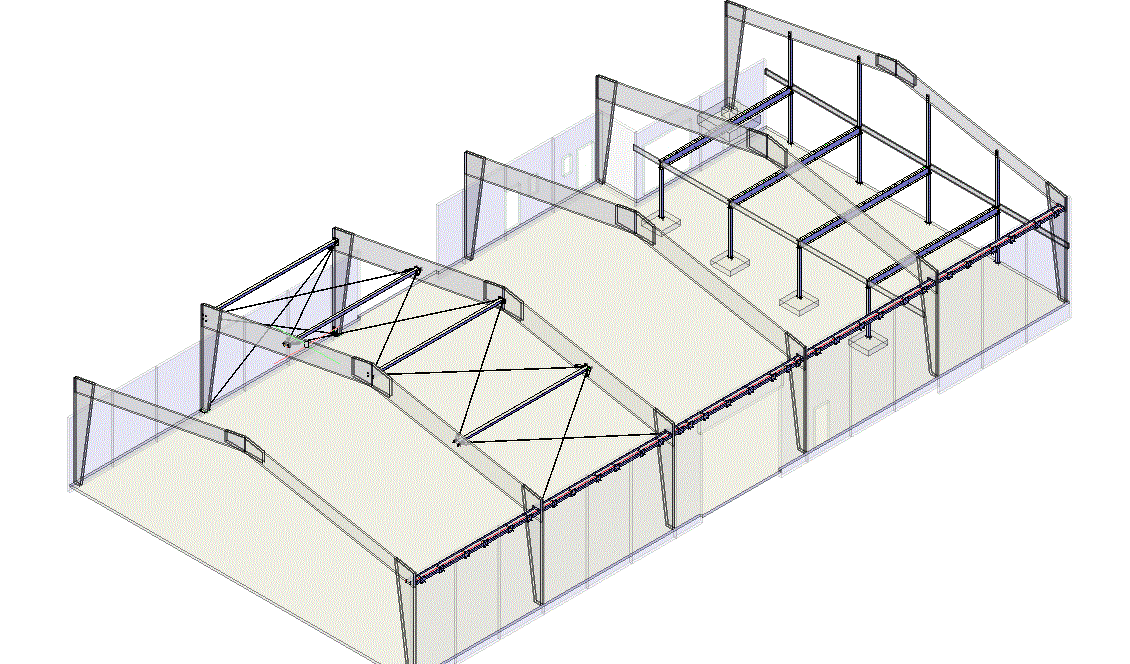

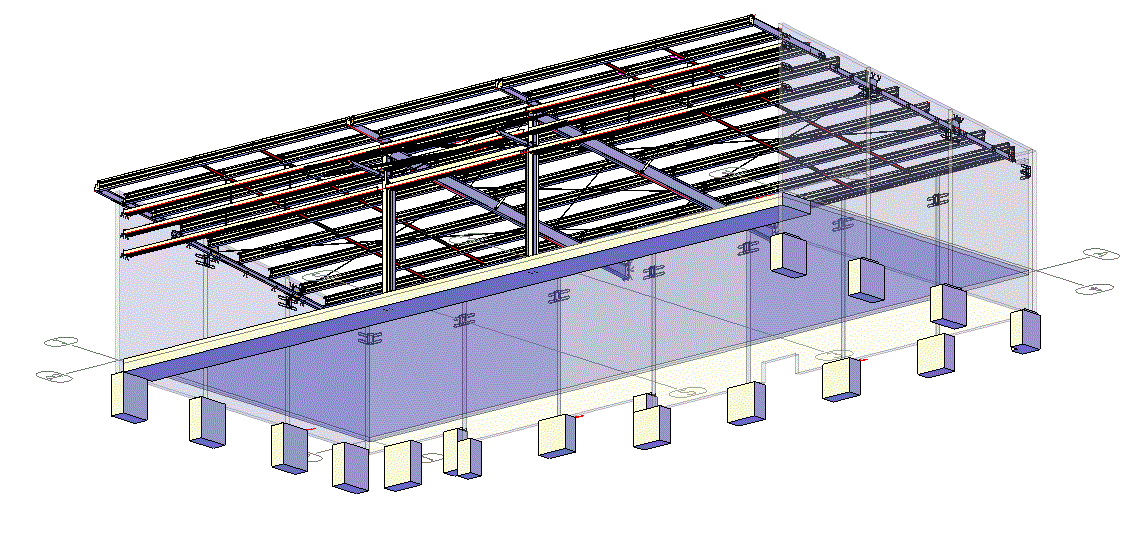

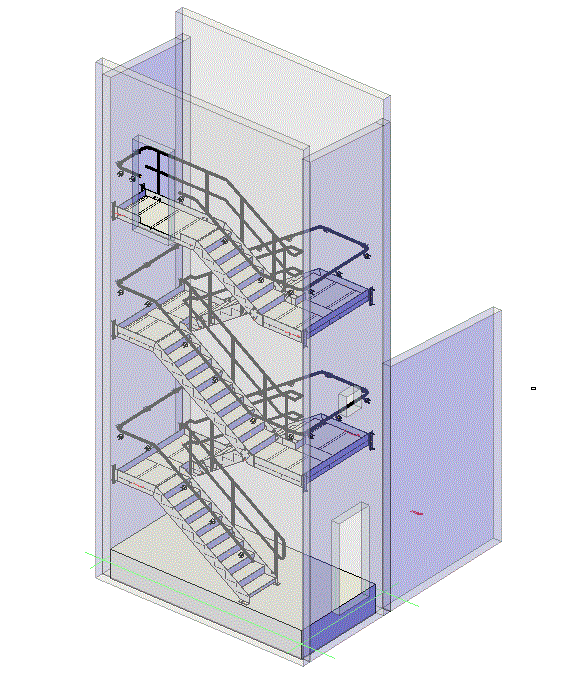

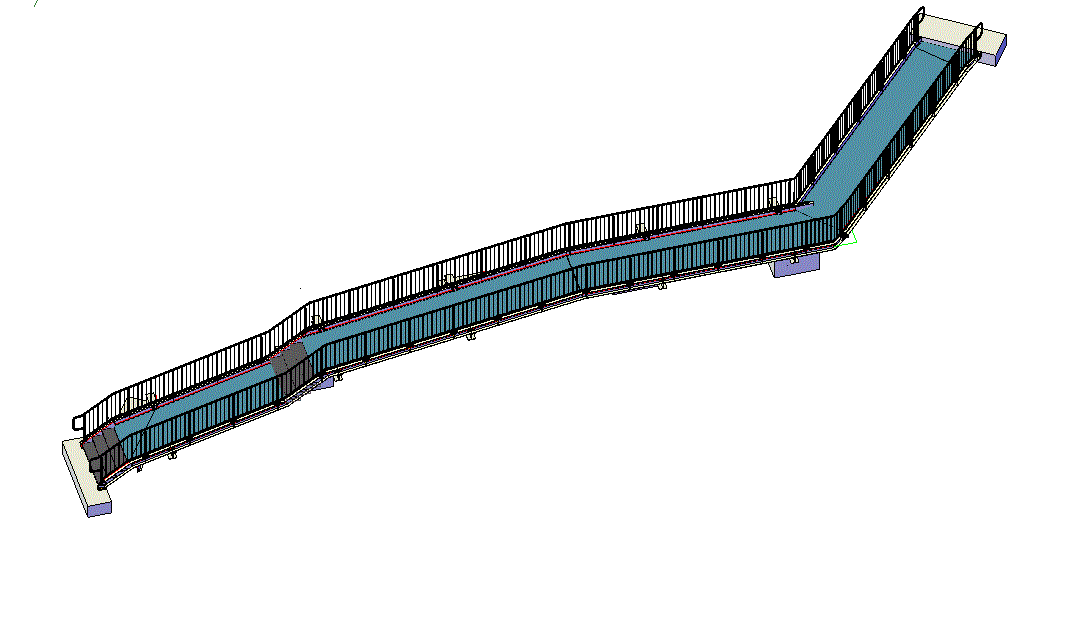

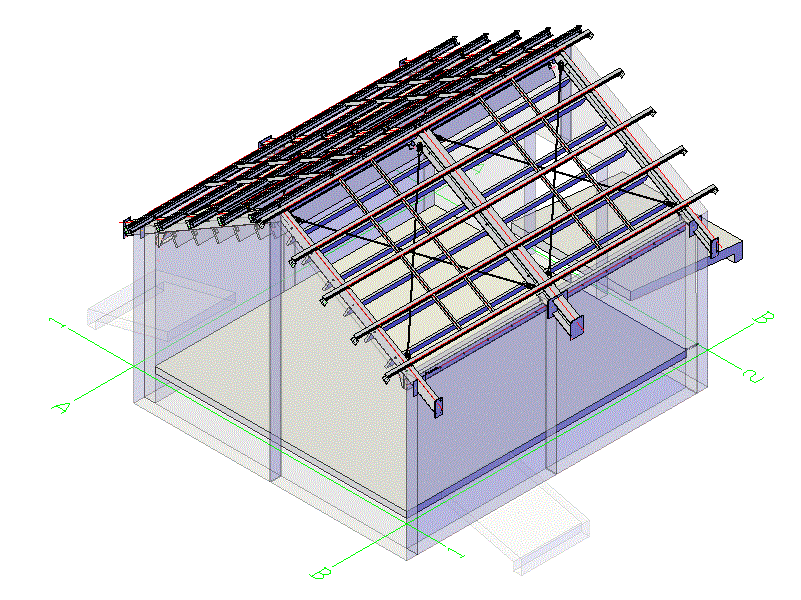

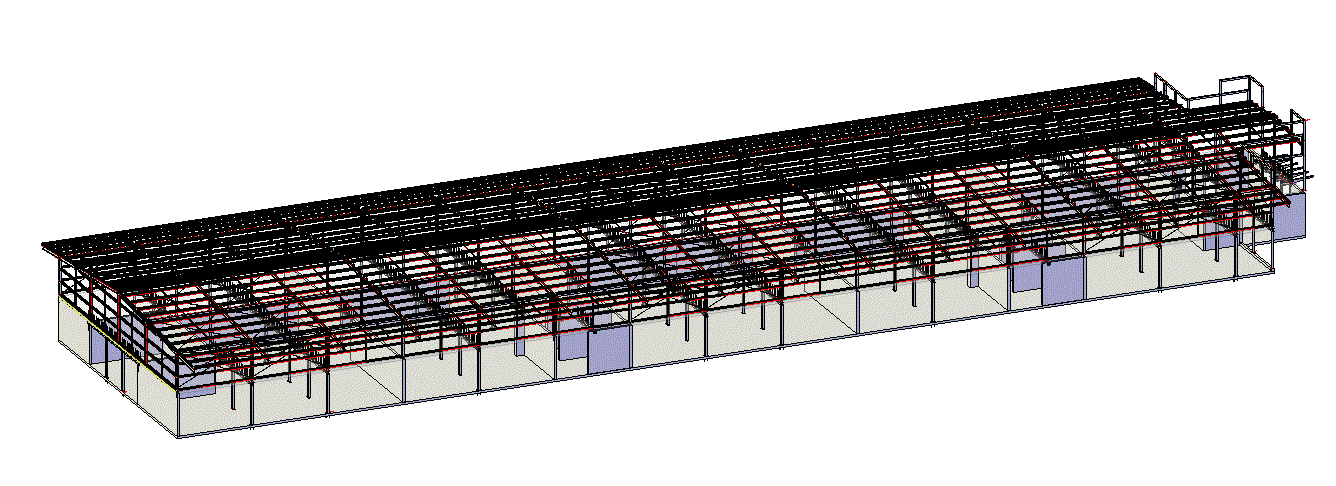

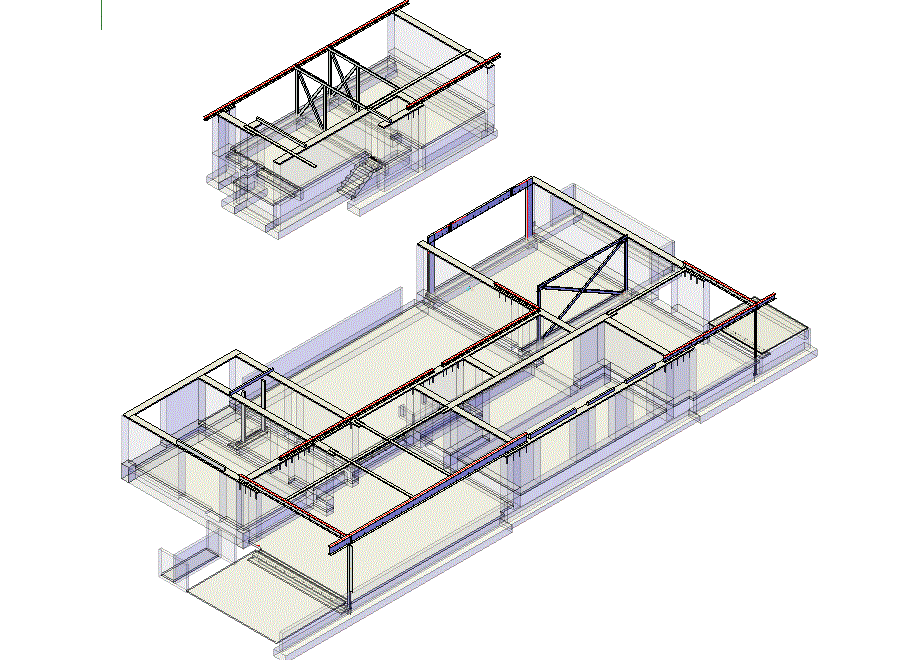

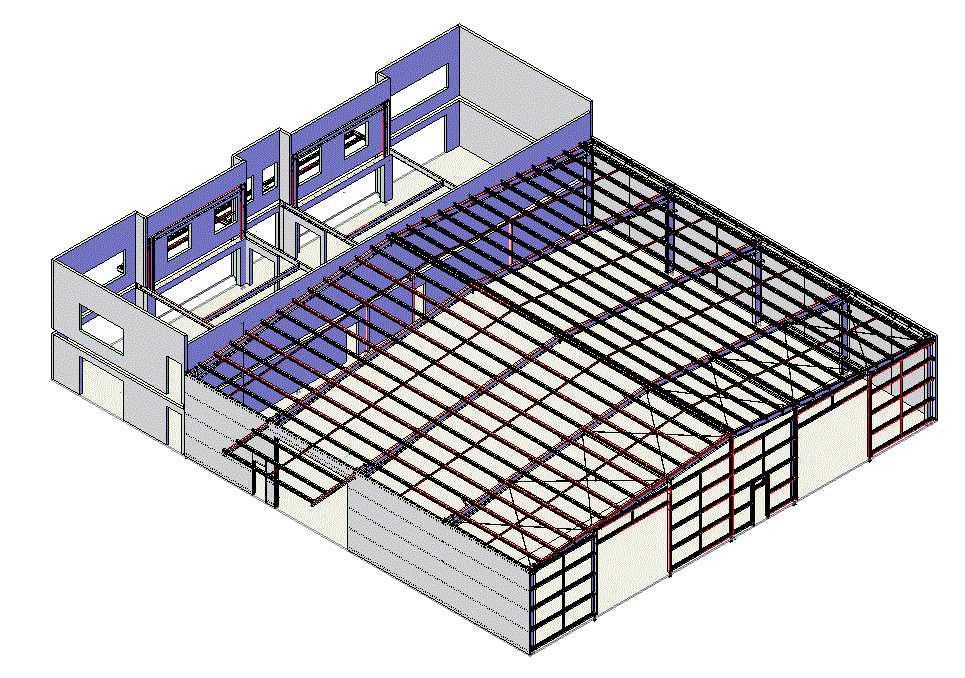

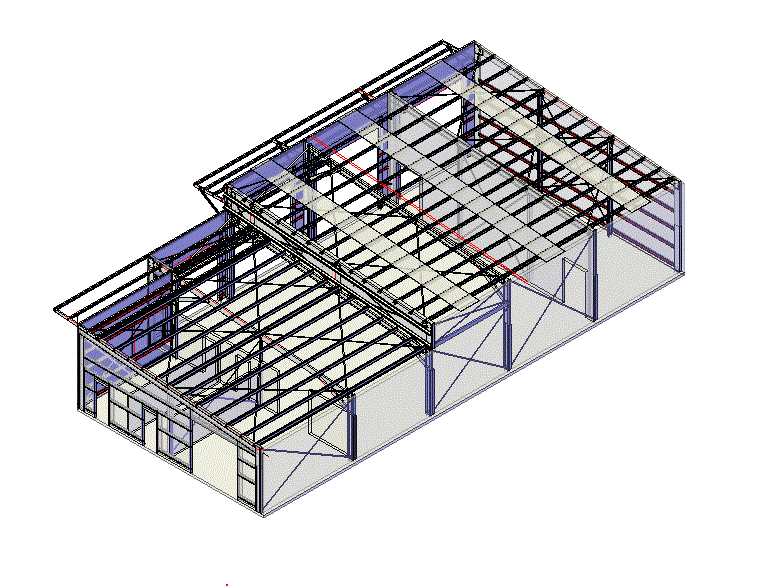

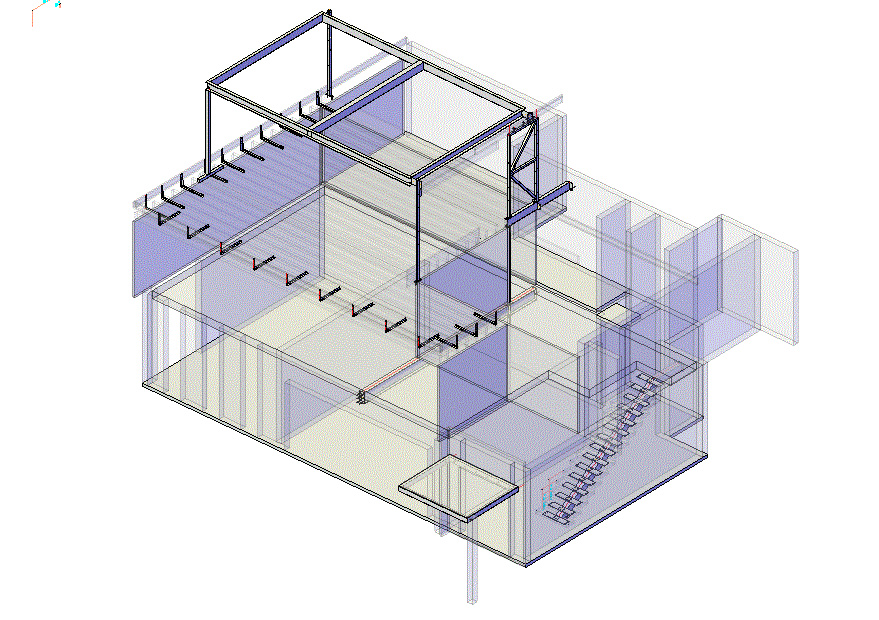

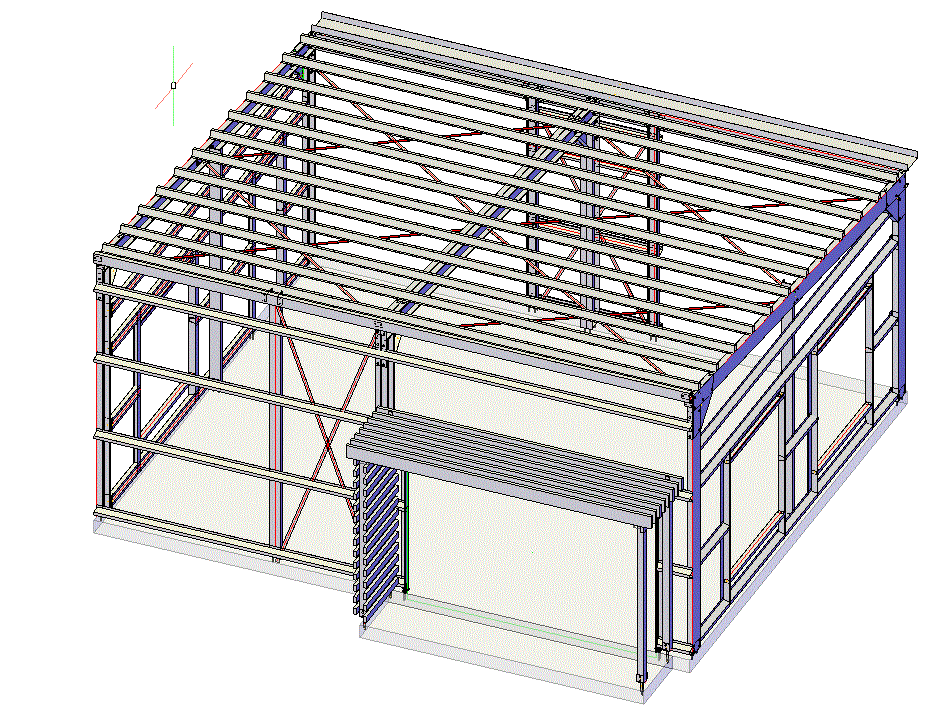

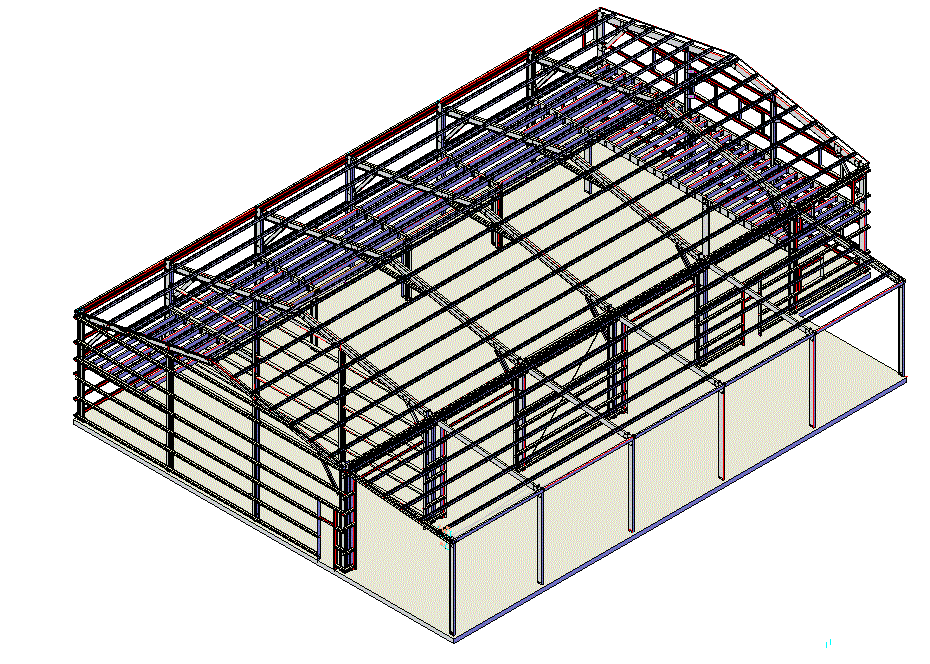

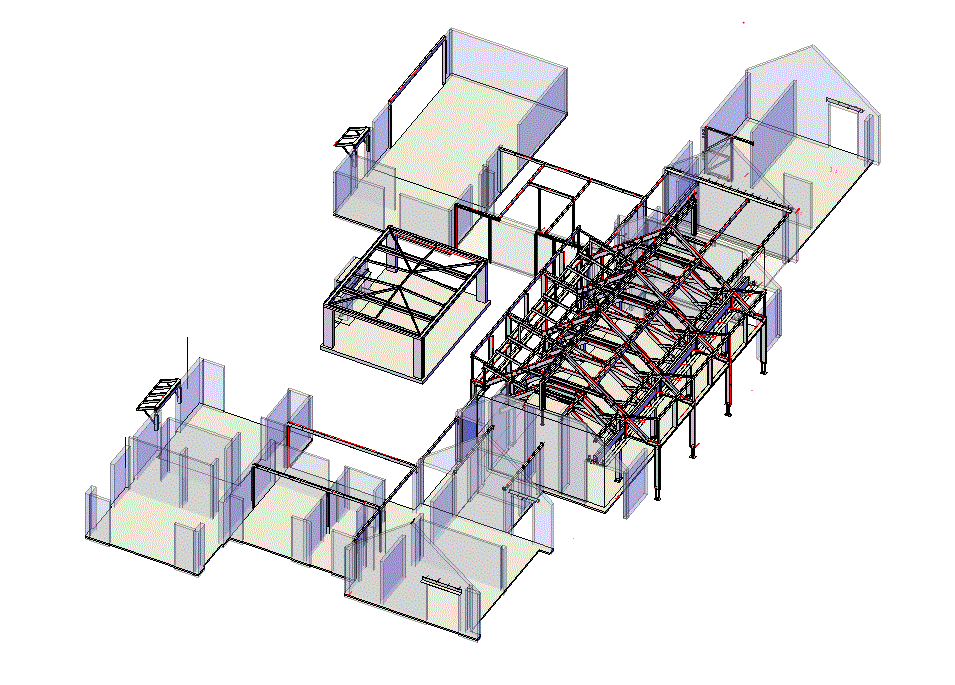

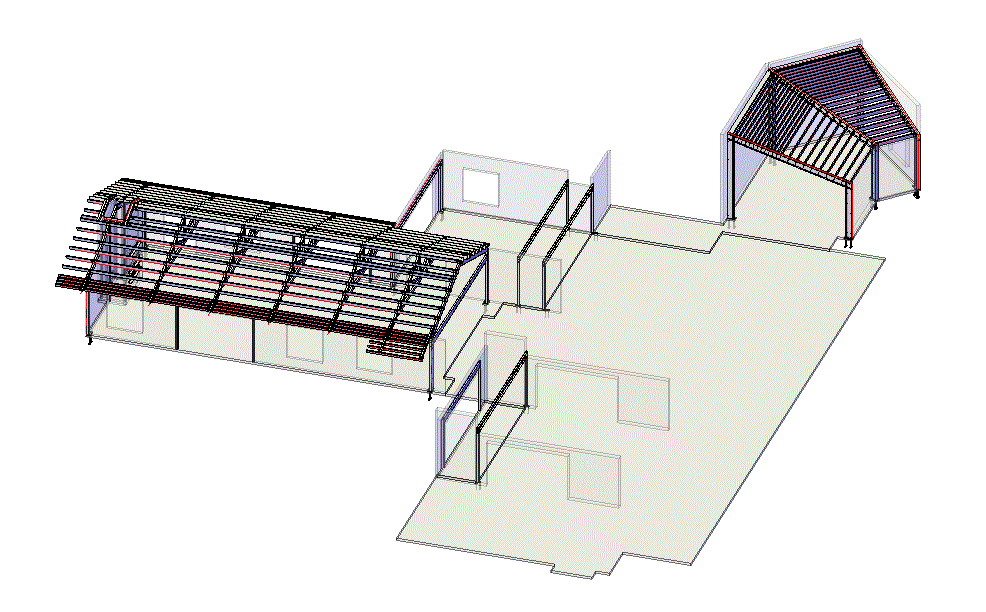

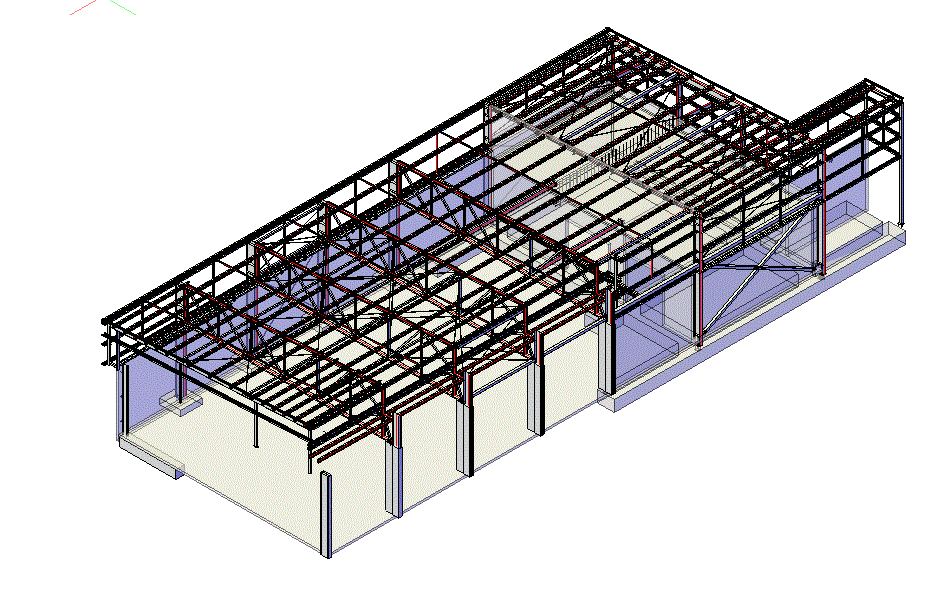

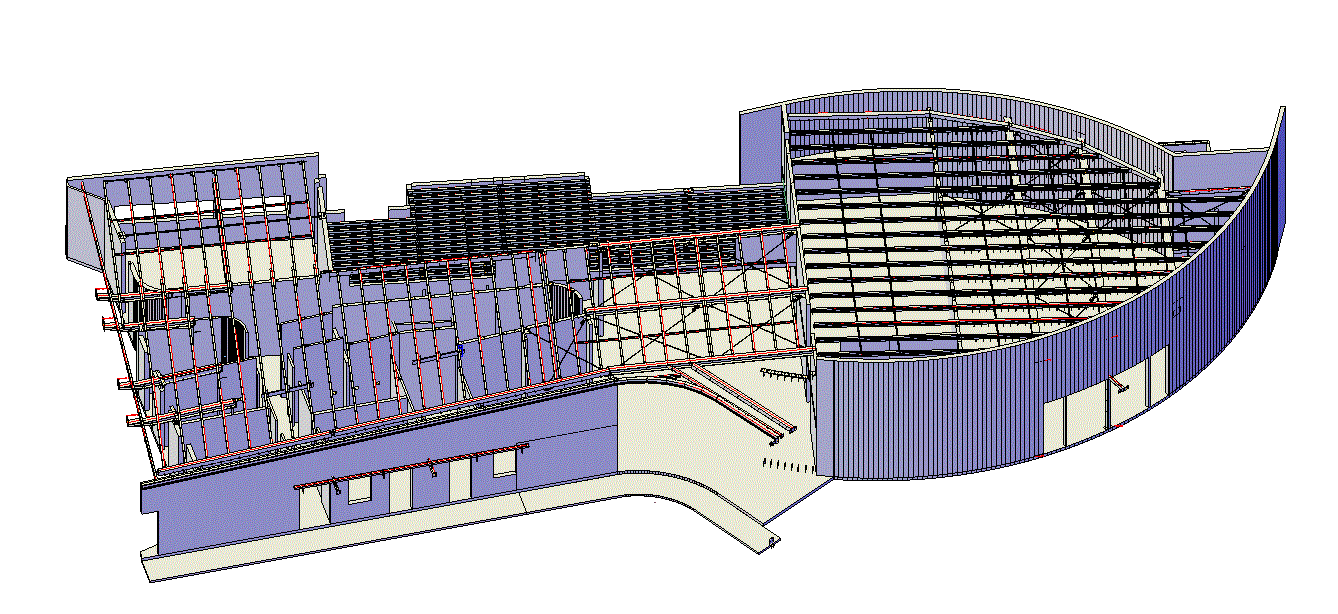

3D modelling
-
2D shop drawings
-
General arrangement drawings
-
Checking and project management
-
Bill of material lists
-
BIM management
-
NC and dxf export
-
Estimating
Precast Panel Drawings

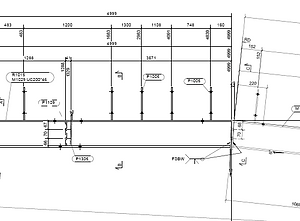

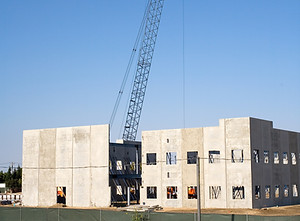

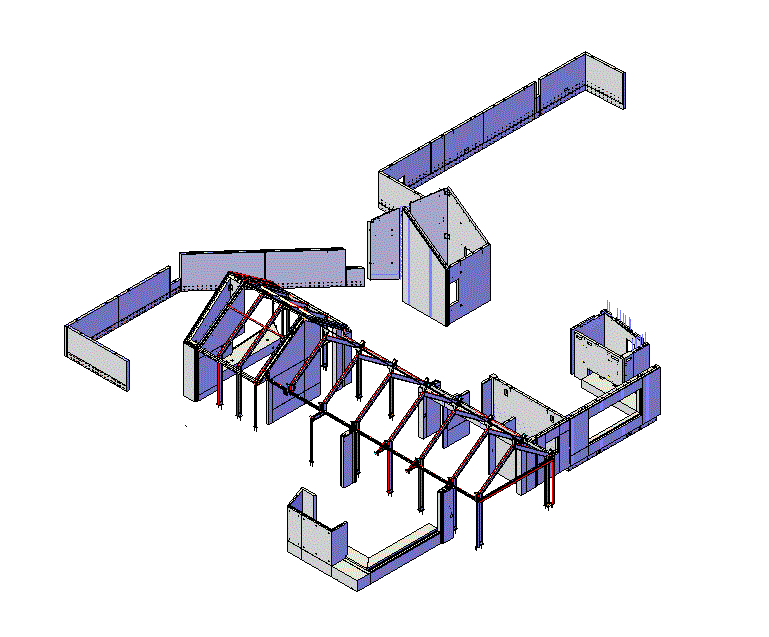

We provide quality precast panel shop drawings to enable you to accurately layout your panel beds. When combined with our steel detailing service we are able to interface the two models. This increases accuracy and ensures that the steel to panel connections will fit on site!
ABOUT
We deliver high quality shop drawing solutions at a competitive price for all types of steel structures and precast concrete panels. We use the latest modeling software, which keeps us at the forefront of the detailing industry. With the latest software we are able to work more efficiently and effectively to ensure we deliver a quality product inside tight timeframes.

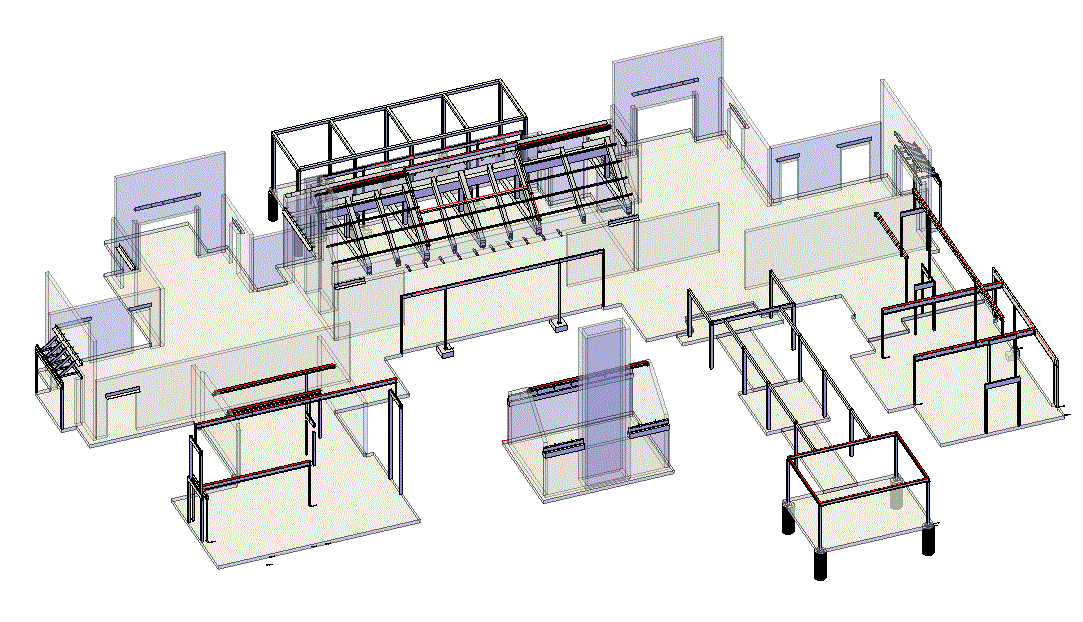

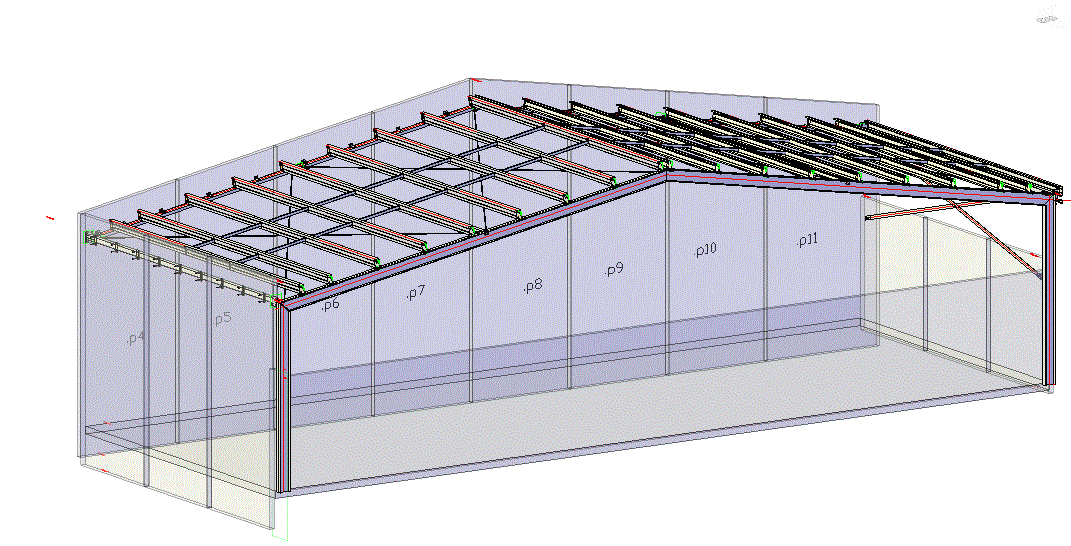

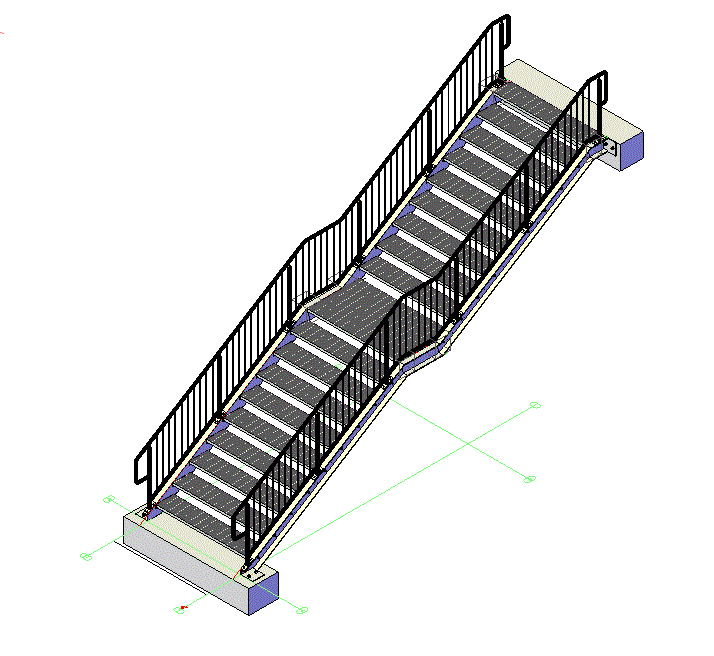

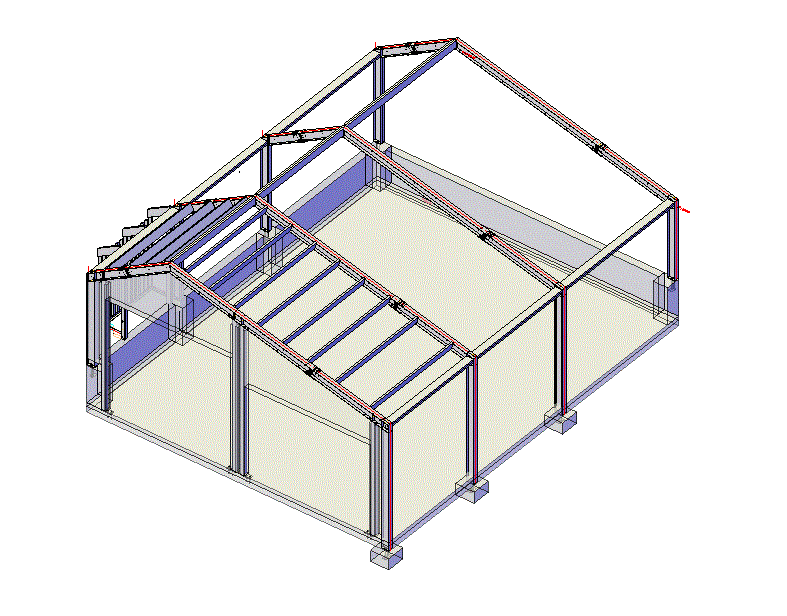

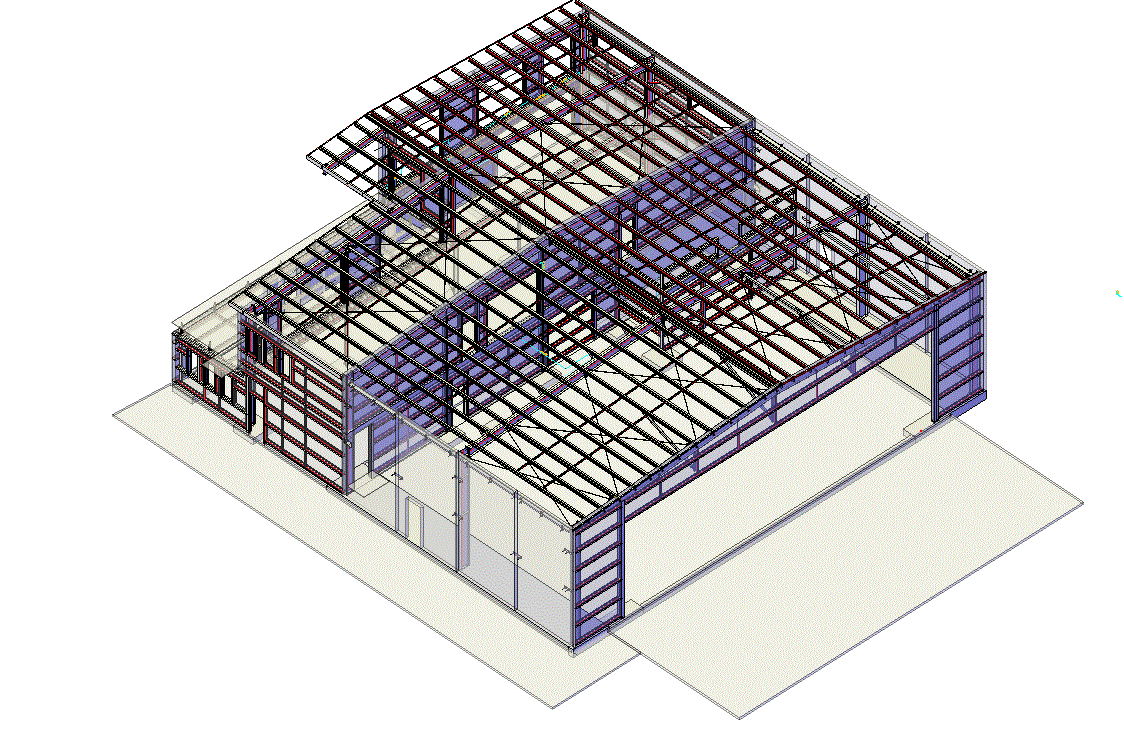

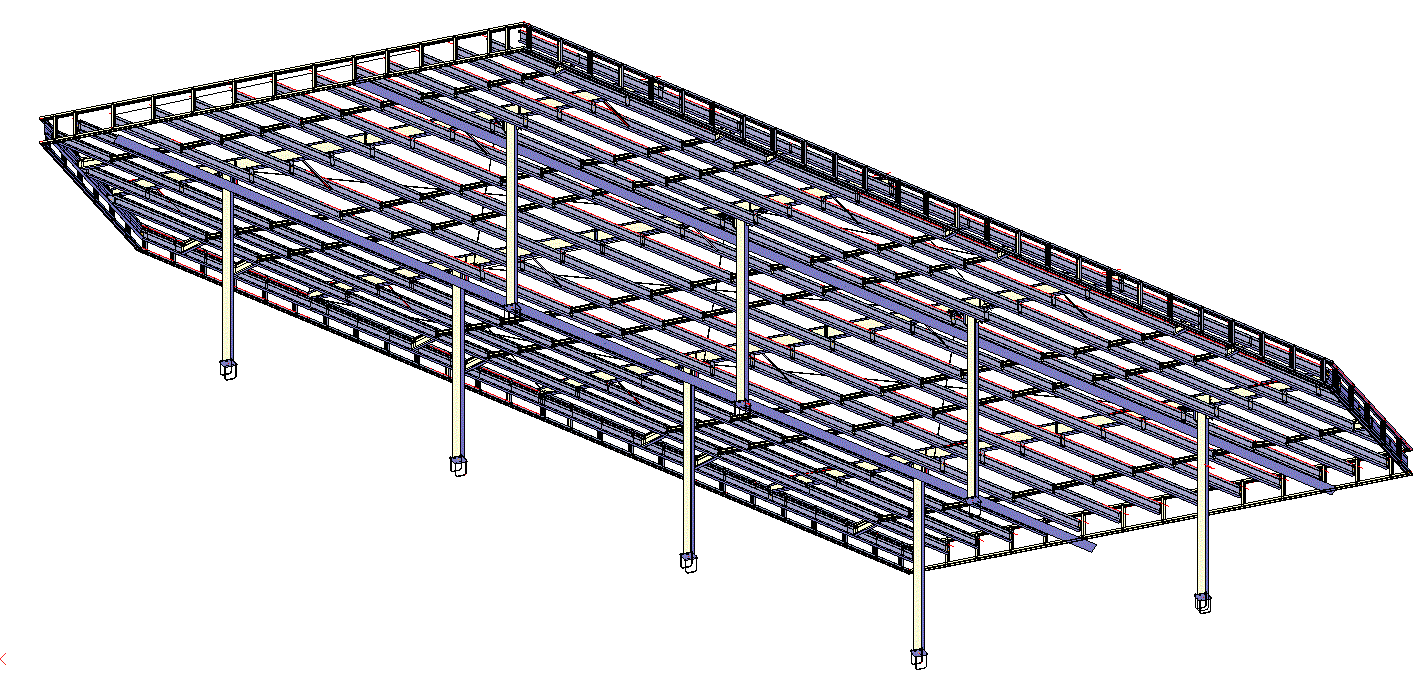

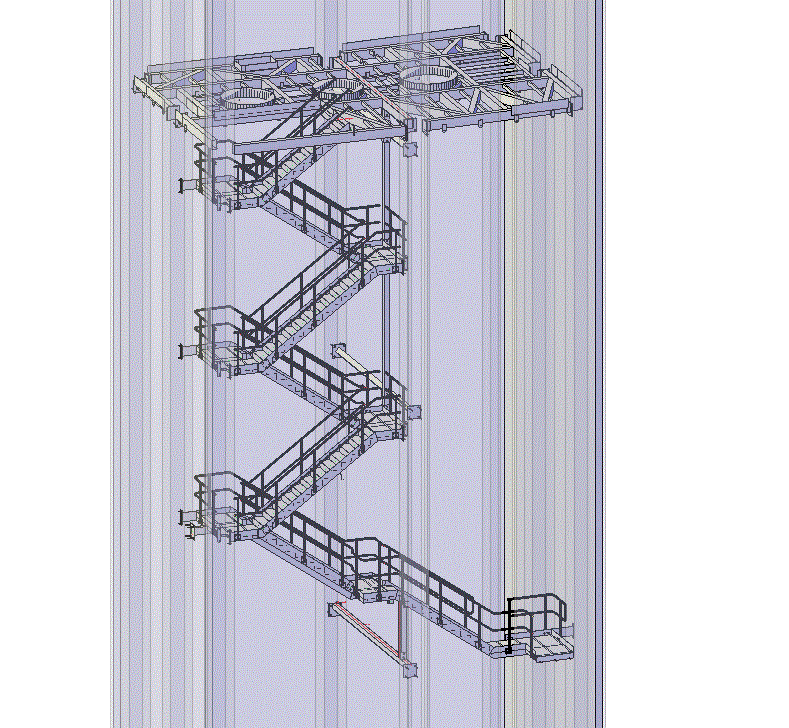

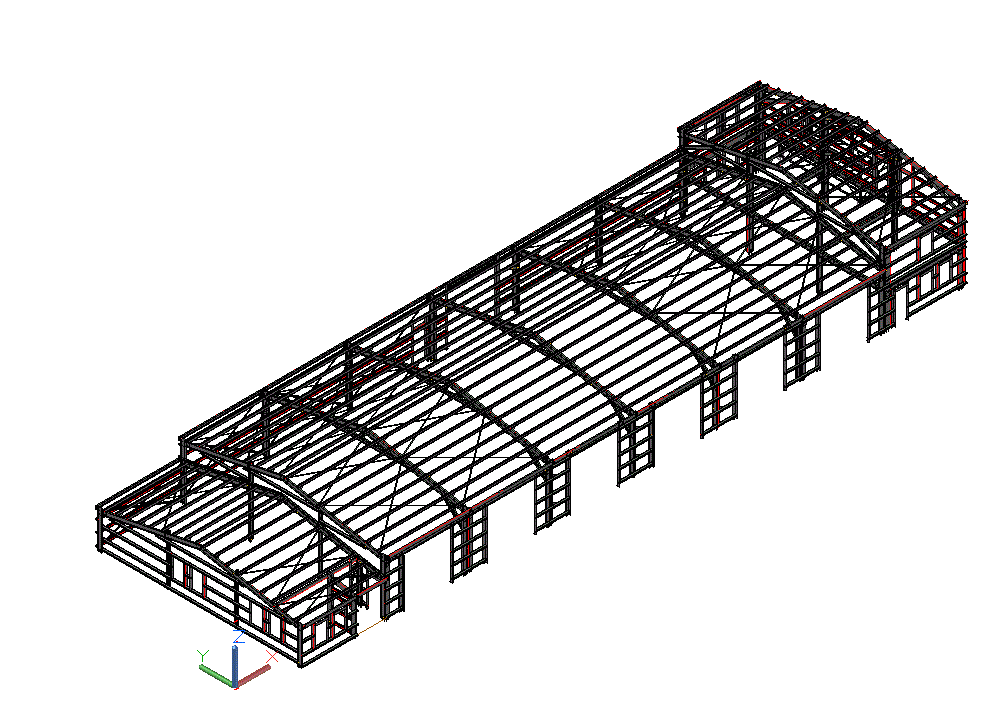

PROJECTS
